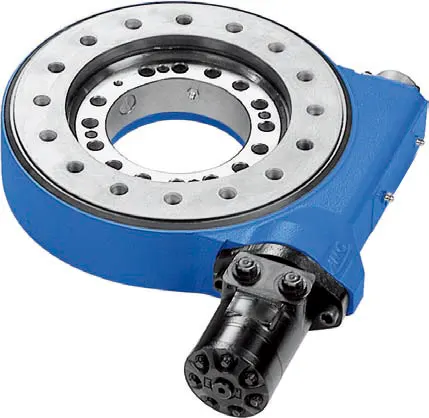

A worm drive slew ring is a type of slew gear that incorporates a worm gear mechanism to achieve rotational movement. This design includes a worm (a screw-like component) and a worm wheel (a gear that meshes with the worm), integrated with a slewing ring and bearings.
Key Features:
- Worm Gear Mechanism: The worm engages with the worm wheel, transferring rotational motion. This setup offers high torque and precise control, making it ideal for applications requiring slow, smooth movement.
- Slewing Ring: The slewing ring supports the rotational axis, providing a stable base for the movement. It can handle heavy loads and ensure consistent performance over time.
- Bearings: Bearings within the assembly reduce friction, enabling smooth and efficient rotation.
[table id=20 /]
Applications:
- Cranes: Allows the boom to rotate precisely for load placement.
- Excavators: Facilitates the rotation of the upper structure for digging and loading operations.
- Wind Turbines: Used in the yaw system to orient the blades towards the wind.
- Robotics: Provides precise rotational control for robotic arms and other components.
Advantages:
- High Torque: The worm gear mechanism provides a high torque output, enabling the movement of heavy loads with minimal input force.
- Self-Locking: The design often includes a self-locking feature, preventing back-driving and maintaining position without additional brakes.
- Compact Design: The integration of the worm drive with the slewing ring offers a compact solution, saving space in machinery.
In summary, worm drive slew rings are essential in applications requiring controlled, high-torque rotational movement, combining efficiency and reliability in a compact form.
