Product Details

This kind of slewing bearing is widely used in engineering machinery, wind power generation equipment, ships, agricultural machinery and other fields. In engineering machinery, it ensures the smooth rotation of tower cranes, cranes and other equipment; in wind power generation systems, it is used to support the rotation of wind turbines; in the shipping industry, it is used for the steering systems and cranes of ships; in agricultural machinery , applied to the steering movement of tractors and harvesters.

Specification

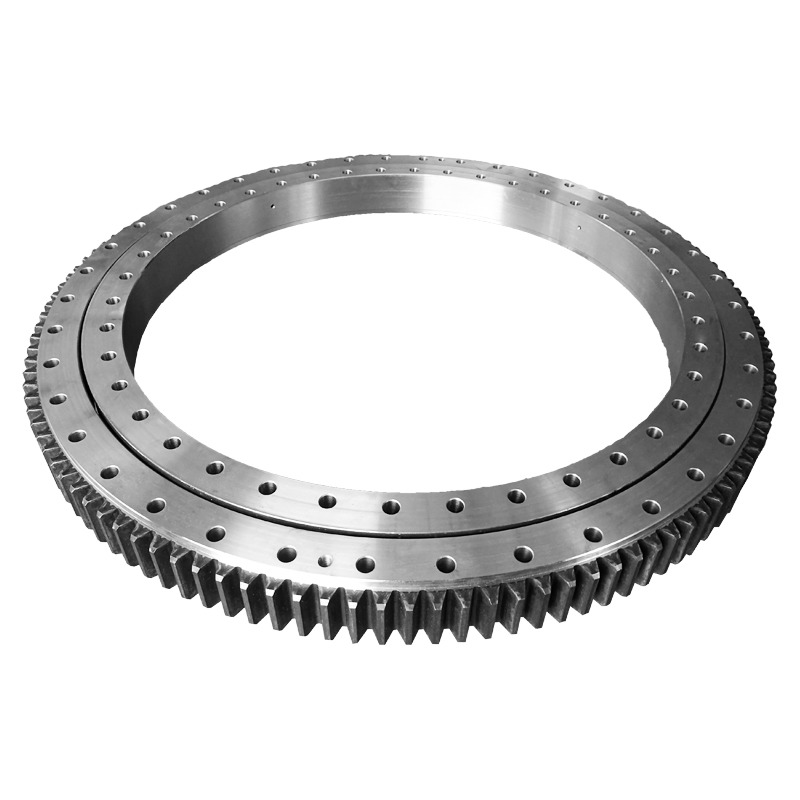

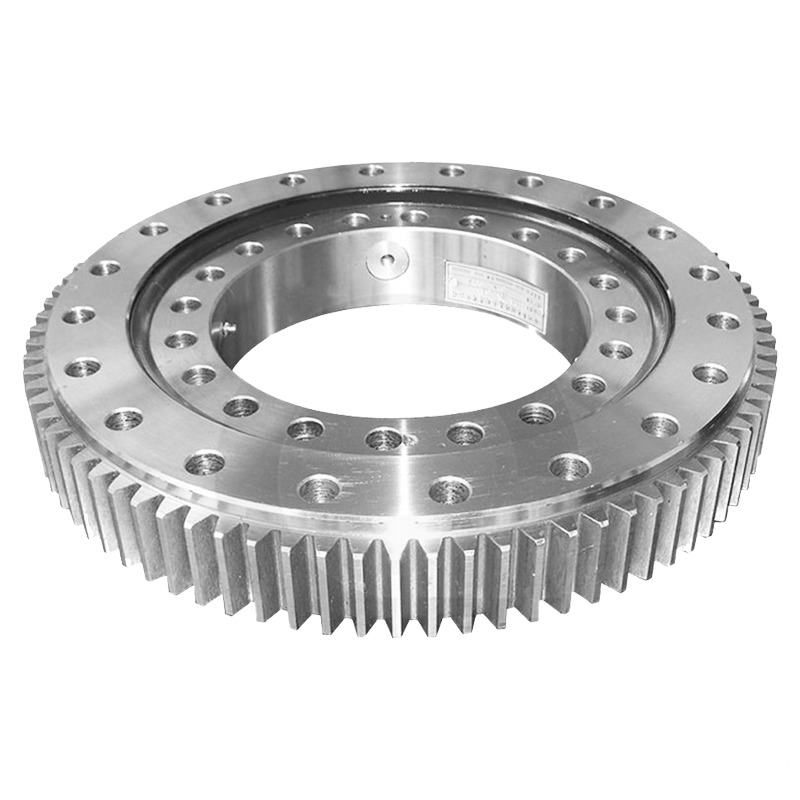

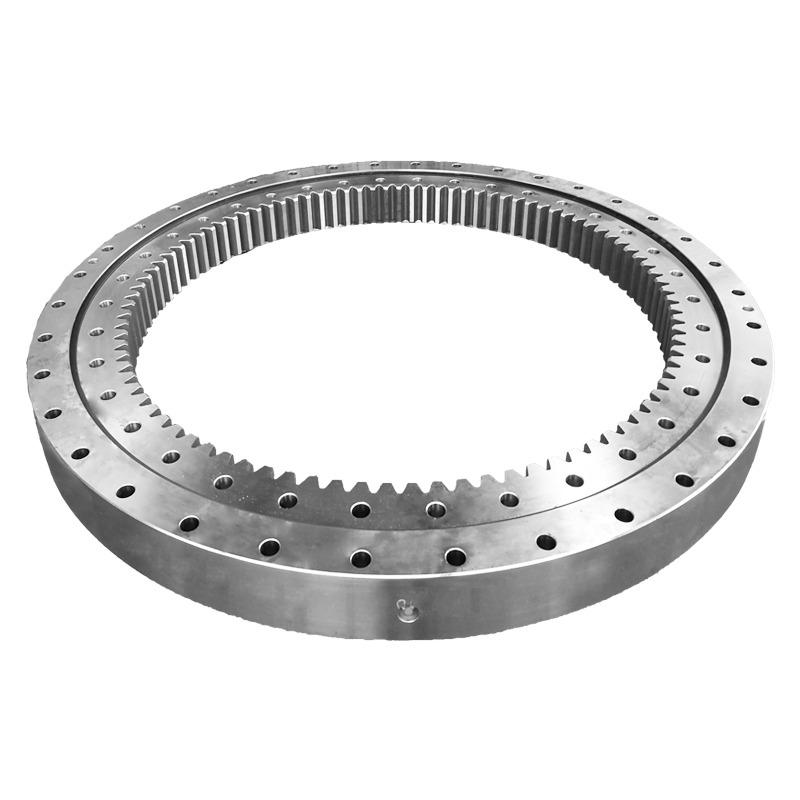

The single row ball slewing bearing is a key mechanical transmission device, mainly composed of inner and outer rings, spherical rolling elements, sealing devices and lubrication systems. Its working principle is based on the rolling motion of spherical rolling elements between the inner and outer rings, allowing the support to smoothly distribute and transmit mechanical loads.

Bearing capacity, structural optimization and effective sealing must be considered during design, while regular maintenance includes lubrication maintenance, seal inspection, track detection and load monitoring to ensure the efficiency and long life of the slewing bearing. Single row ball slewing bearings play an important role in various fields with their simple structure and reliability.

NO.	De	D	d	H	b	m	z	x	k	Q&T	KG
011.20.400	499		325	55	46	5	97	+0.5	0.1	44	37
011.20.450	554		369	55	46	5	108	+0.5	0.1	44	41
011.30.500	629	602	398	80	60	5	123	+0.5	0.1	52	89
012.30.500	628.8	602	398	80	60	6	102	+0.5	0.1	62	89
011.20.560	670.8		479	55	46	6	109	+0.5	0.1	53	56
011.30.560	689	662	458	80	60	5	135	+0.5	0.1	52	100
012.30.560	688.8	662	458	80	60	6	112	+0.5	0.1	62	100
011.20.630	742.8		543	55	46	6	121	+0.5	0.1	53	64
011.30.630	772.8	732	528	80	60	6	126	+0.5	0.1	62	118
012.30.630	774.4	732	528	80	60	8	94	+0.5	0.1	83	118
011.20.710	820.8		623	55	46	6	134	+0.5	0.1	53	70
011.30.710	850.8	812	608	80	60	6	139	+0.5	0.1	62	131
012.30.710	854.4	812	608	80	60	8	104	+0.5	0.1	83	131
011.25.764	886.8		671	63	54	6	145	+0.5	0.1	63	100
011.20.800	930	894	704	70	50	6	154	-0.5	0		120
012.20.800	936	894	704	70	50	8	116	-0.5	0		120
011.25.800	942	904	692	78	58	6	156	-0.5	0		150
012.25.800	952	904	692	78	58	8	118	-0.5	0		154
011.40.800	966.4	922	678	100	80	8	118	+0.5	0.1	111	219
012.40.800	968	922	678	100	80	10	94	+0.5	0.1	140	219
011.25.900	1048	1004	792	78	58	8	130	-0.5	0		170
012.25.900	1060	1004	792	78	58	10	105	-0.5	0		176
011.40.900	1062.4	1022	778	100	80	8	130	+0.5	0.1	111	244
012.40.900	1068	1022	778	100	80	10	104	+0.5	0.1	140	244
011.25.980	1110.4		887	63	54	8	136	+0.5	0.1	83	130
011.25.1000	1152	1104	892	78	58	8	143	-0.5	0		191
012.25.1000	1160	1104	892	78	58	10	115	-0.5	0		194
011.35.1000	1160	1120	876	90	70	8	144	-0.5	0		238
012.35.1000	1170	1120	876	90	70	10	116	-0.5	0		244
011.40.1000	1188	1122	878	100	80	10	116	+0.5	0.1	140	294
012.40.1000	1185.6	1122	878	100	80	12	96	+0.5	0.1	167	284
011.25.1120	1278		1013	79	70	10	125	+0.5	0.1	135	191
011.35.1120	1300	1240	996	90	70	10	129	-0.5	0		286
012.35.1120	1308	1240	996	90	70	12	108	-0.5	0		289
011.40.1120	1298	1242	998	100	80	10	127	+0.5	0.1	140	318
012.40.1120	1305.6	1242	998	100	80	12	106	+0.5	0.1	167	318
011.30.1180	1338		1068	79	70	10	131	+0.5	0.1	129	238
011.25.1250	1408		1143	79	70	10	138	+0.5	0.1	135	232
011.35.1250	1430	1370	1126	90	70	10	142	-0.5	0		317
012.35.1250	1440	1370	1126	90	70	12	119	-0.5	0		324
011.40.1250	1450	1390	1108	102	80	10	144	-0.5	0		416
012.40.1250	1452	1390	1108	102	80	12	120	-0.5	0		412
011.45.1250	1449.6	1390	1110	110	90	12	118	+0.5	0.1	188	438
012.45.1250	1453.2	1390	1110	110	90	14	101	+0.5	0.1	219	438
011.30.1320	1497.6		1208	89	80	12	122	+0.5	0.1	176	313
011.35.1400	1584	1520	1276	90	70	12	131	-0.5	0		354
012.35.1400	1596	1520	1276	90	70	14	113	-0.5	0		364
011.40.1400	1608	1540	1258	102	80	12	133	-0.5	0		470
012.40.1400	1610	1540	1258	102	80	14	114	-0.5	0		465
011.40.1400	1593.6		1266	94	85	12	130	+0.5	0.1	187	424
011.45.1400	1605.6	1540	1260	110	90	12	131	+0.5	0.1	188	501
012.45.1400	1607.2	1540	1260	110	90	14	112	+0.5	0.1	219	501
011.30.1500	1677.6		1388	89	80	12	137	+0.5	0.1	176	355
011.40.1600	1803.2		1466	94	85	14	126	+0.5	0.1	218	503
011.40.1600	1812	1740	1458	102	80	12	150	-0.5	0		554
012.40.1600	1820	1740	1458	102	80	14	129	-0.5	0		561
011.45.1600	1817.2	1740	1460	110	90	14	127	+0.5	0.1	219	584
012.45.1600	1820.8	1740	1460	110	90	16	111	+0.5	0.1	250	584
011.50.1600	1824	1762	1434	124	100	12	151	-0.5	0		750
012.50.1600	1834	1762	1434	124	100	14	130	-0.5	0		763
011.40.1800	1999.2		1666	94	85	14	140	+0.5	0.1	218	558
011.40.1800	2016	1940	1658	102	80	14	143	-0.5	0		612
012.40.1800	2032	1940	1658	102	80	16	126	-0.5	0		637
011.45.1800	2013.2	1940	1660	110	90	14	141	+0.5	0.1	219	652
012.45.1800	2012.8	1940	1660	110	90	16	123	+0.5	0.1	250	639
011.50.1800	2044	1964	1634	124	100	14	145	-0.5	0		887
012.50.1800	2048	1964	1634	124	100	16	127	-0.5	0		885
011.50.1900	2139.2	2139.2	1729	109	100	14	150	+0.5	0.1	257	861
011.60.2000	2268.8	2178	1825	144	120	16	139	+0.5	0.1	333	1202
012.60.2000	2264.4	2178	1825	144	120	18	123	+0.5	0.1	375	1169
011.50.2130	2380.8	2380.8	1959	109	100	16	146	+0.5	0.1	294	978
011.60.2240	2492.8	2418	2065	144	120	16	153	+0.5	0.1	333	1294
012.60.2240	2498.4	2418	2065	144	120	18	136	+0.5	0.1	375	1294
011.50.2355	2604.8	2604.8	2184	109	100	16	160	+0.5	0.1	294	1075
011.60.2500	2768.4	2678	2325	144	120	18	151	+0.5	0.1	375	1509
012.60.2500	2776	2678	2325	144		20	136	+0.5	0.1	418	1509
011.50.2645	2892.8	2892.8	2474	109	100	16	178	+0.5	0.1	294	1199
011.60.2800	3074.4	2978	2625	144	120	18	168	+0.5	0.1	375	1696
012.60.2800	3076	2978	2625	144	120	20	151	+0.5	0.1	418	1696
011.75.3150	3476	3376	2922	174	150	20	171	+0.5	0.1	522	2873
012.75.3150	3471.6	3376	2922	174	150	22	155	+0.5	0.1	574	2873

Frequently Asked Questions

Expert Insights and Reliable Solutions to Your Most Common Questions.

1. What types of slewing bearings does ZZ Slewing Bearing provide?

ZZ Slewing Bearing supplies a full range of slewing bearings to meet different industrial needs:

Single row four point contact slewing bearings Application: medium loads, precise rotation.
Double row ball bearings Application: higher radial and axial loads.
Cross roller bearings –Application: high rigidity, suitable for robots and machining centers.
Three row roller bearings – Application: extreme loads in heavy equipment.
Ball combine roller bearings –Application: precise rotational adjustment applications.
Customized bearings – tailored for specific equipment requirements.

2. How do I choose the right bearing for my application?

Typical selection parameter for ZZ clients:

Load type: axial, radial, and tilting moment.

Rotation RPM: ensures long service life.

Installation space & mounting dimensions: inner/outer ring diameter, bolt circle.

Precision & rigidity requirements: critical for cranes, excavators, and robots.

ZZ engineers provide professional selection guidance according to your equipment and drawings.

3. What materials does ZZ Slewing Bearing use for slewing bearings?

ZZ Slewing Bearing selects materials for strength, wear resistance, and long-term durability:

Slewing ring: 42CrMo, 50Mn, C45N, 40CrNiMo, C48E.

Special forging spare parts: carburized/hardened steels for gear teeth (20CrMnTi, 18CrNiMo7‑6).

Corrosion resistant: SS 304, 316L, duplex stainless steel.

Surface treatments: heat treatment, quenching, carburizing, induction hardening, and surface coating(Four-Layer Packing, Strong Anti-Rust Oil, Black Oxide Treatment, Jet Black Paint Finish, Hot-Dip Galvanizing (CGL), Electro-Galvanizing (EGL), Hot-Dip Galvanizing + Paint Finish)

4. How can ZZ Slewing Bearing achieve maximum service life?

Correct installation with flat surfaces.

Proper lubrication using grease.

Avoid overloading or shock loads over capacity.

Monitor operating conditions regularly to prevent debris entry.

5. What causes abnormal noise or vibration in bearings?

Typical factors observed by ZZ engineers:

Insufficient or incorrect lubrication.
(dust, metal particles) in raceways.
Rolling element or track damage.
Uneven mounting surfaces or misalignment.
Incorrect bolt torque(below grade 8.8) or preloading.

6. What are lead times and lifetime guarantee?

In-stock: 3–7 days.

Custom: 2–6 weeks depending on size, load, and precision.

Warranty: 1 year

Lifetime Free Spare Parts: Glue, seals, steel ball

7. Does ZZ provide installation and technical support?

Yes — ZZ Slewing Bearing offers:

Detailed installation manuals.

Online engineering support.

Guidance for lubrication, maintenance, and troubleshooting solution.

8. How do ZZ Slewing Bearing differ from competitors?

Full range of materials and heat treatments for various load conditions.

High precision and strict quality inspection standards.

Engineering support before and after delivery.

Customization to exact equipment requirements.

Proven performance in cranes, excavators, robotics, wind turbines, and heavy machinery etc.
