Anillo de giro Excavadora - ZZ Slewing Bearing

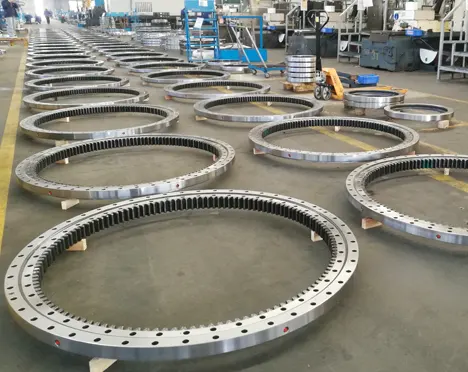

Rodamiento giratorio para excavadora duradero y estable

El rodamiento giratorio para excavadoras duradero y estable está fabricado para ofrecer un rendimiento duradero en entornos difíciles. Con materiales de alta resistencia y un diseño superior, ofrece una durabilidad y estabilidad excepcionales, reduciendo el desgaste y los costes de mantenimiento. Ideal para excavadoras, garantiza una rotación suave y fiable para mejorar la eficiencia y la seguridad.

Rodamientos giratorios para excavadoras : nuestra especialidad

El rodamiento giratorio para excavadoras – En el corazón de lo que hacemos refleja el compromiso de ZZ Company de proporcionar rodamientos giratorios personalizados de alta calidad diseñados para las aplicaciones de excavadoras más exigentes. Gracias a nuestras avanzadas capacidades de fabricación, ofrecemos soluciones a medida que cumplen los requisitos específicos del cliente en cuanto a durabilidad, rendimiento y fiabilidad. Nuestra experiencia garantiza que cada rodamiento ofrezca una estabilidad y eficiencia excepcionales, ayudando a las excavadoras a funcionar sin problemas y con seguridad en cualquier entorno.

¿Desea saber más sobre la selección de rodamientos de giro para excavadoras?

En la actualidad, sólo enumeramos algunos modelos de rodamientos de giro. Para más modelos y especificaciones detalladas, póngase en contacto con nuestro equipo de ventas para obtener la última cotización y soluciones personalizadas. Nuestros productos se pueden personalizar según los diferentes modelos de excavadoras y necesidades especiales para garantizar la mejor combinación.

Brand	Model No.	OD/ID (mm)	Total thickness (mm)	O-ring/I-ring (mm)	Bolt holes/Out	Bolt holes/Inner	Teeth No.	N.W (KG)
ZZ KOMATSU	PC30-1	595/441	52	40/43	15-Φ13.5	16-Φ13.5	89	35
ZZ KOMATSU	PC30-2	614.5/452	53.5	40/43.5	20-Φ13.5	20-Φ13.5	92	40
ZZ KOMATSU	PC40	680/495	60	50/50	24-Φ14	24-Φ14	78	60
ZZ KOMATSU	PC50-7	748/573.5	60	50/50	27-Φ14	24-Φ14	90	70
ZZ KOMATSU	PC55	748/573.5	60	50/50	27-Φ14	24-Φ14	90	70
ZZ KOMATSU	PC56	748/573.5	60	50/50	27-Φ14	24-Φ14	90	70
ZZ KOMATSU	PC60-5	852/627	75	58/62	24-Φ18	24-Φ18	80	105
ZZ KOMATSU	PC60-6	806/596	74	59/61	24-Φ18	24-Φ18	76	95
ZZ KOMATSU	PC60-6	852/627	75	58/62	24-Φ18	24-Φ18	80	105
ZZ KOMATSU	PC60-7	806/596	74	59/61	23-Φ18	24-Φ18	76	95
ZZ KOMATSU	PC60-7	852/627	75	58/62	22-Φ18	24-Φ18	80	105
ZZ KOMATSU	PC70-8	806/596	74	59/61	24-Φ18	24-Φ18	76	95
ZZ KOMATSU	PC75UU	852/627	75	58/62	25-Φ18	24-Φ18	80	105
ZZ KOMATSU	PC90-6	852/627	75	58/62	24-Φ18	24-Φ18	80	105
ZZ KOMATSU	PC100-3	1111/873	75	65/62	30-Φ18	30-Φ18	89	150
ZZ KOMATSU	PC100-5	1111/873	75	65/63	38-Φ18	38-Φ18	89	150
ZZ KOMATSU	PC120-5	1111/873	75	65/63	38-Φ18	38-Φ18	89	150
ZZ KOMATSU	PC120-6	1111/882	77	65/64	34-Φ18	38-Φ18	90	150
ZZ KOMATSU	PC120-6	1106/884	75	65/64	34-Φ18	36-M16	90	150
ZZ KOMATSU	PC150-5	1190/922	83	73/67	26-Φ22	30-Φ22	94	190
ZZ KOMATSU	PC150-7	1189/922	83	73/67	26-Φ22	30-Φ22	94	190
ZZ KOMATSU	PC160-7	1224/974	82	67/73	32-Φ24	36-M20	99	200
ZZ KOMATSU	PC200-1	1242/915	100	90/90	22-M20	36-Φ24	78	270
ZZ KOMATSU	PC200-2	1209/916	95	80/85	22-Φ24	36-Φ24	78	240
ZZ KOMATSU	PC200-3	1303/1084	104	81/90	26-M22	36-M20	110	250
ZZ KOMATSU	PC200-5	1302/1084	109.5	86.5/90	26-M24	36-M20	110	250
ZZ KOMATSU	PC200-8	1321/1078	98	77/89	32-Φ24	36-M20	96	260
ZZ KOMATSU	PC210-7	1323/1084	100	77/90	32-Φ24	36-M20	110	250
ZZ KOMATSU	PC220-3	1303/1084	104	81/90	26-M22	36-M20	110	250
ZZ KOMATSU	PC220-5	1302/1084	109.5	86.5/90	26-M24	36-M20	110	250
ZZ KOMATSU	PC200-6	1323/1084	100	77/90	32-Φ26	36-M20	110	250
ZZ KOMATSU	PC200-6	1323/1084	100	77/90	32-Φ24	36-M20	110	250
ZZ KOMATSU	PC200-7	1323/1084	100	77/90	32-Φ24	36-M20	110	250
ZZ KOMATSU	PC220-7	1323/1073	112	77/102	32-Φ24	36-M22	92	270
ZZ KOMATSU	PC210-7K	1323/1073	112	77/102	33-Φ24	36-M22	92	270
ZZ KOMATSU	PC210-8K	1323/1078	112	77/102	33-Φ24	36-M22	96	270
ZZ KOMATSU	PC228-1	1323/1084	100	77/90	32-Φ24	36-M20	110	250
ZZ KOMATSU	PC228-3	1323/1083	100	77/90	40-Φ24	36-M20	110	250
ZZ KOMATSU	PC300-2	1470/1140	137	100/110	34-Φ26	36-Φ26	83	420
ZZ KOMATSU	PC300-3	1526/1236	122	87/110	35-M24	40-M24	90	450
ZZ KOMATSU	PC300-5	1526/1236	122	97/110	35-M24	40-M24	90	450
ZZ KOMATSU	PC300-6	1532/1235	125	95/113	35-M24	40-M24	90	450
ZZ KOMATSU	PC350-6	1532/1235	125	95/113	35-Φ26	40-M24	90	450
ZZ KOMATSU	PC360-7	1532/1235	125	95/113	35-Φ26	40-M24	90	450
ZZ KOMATSU	PC400-3	1550/1236	147	108/135	35-M24	40-M24	90	550
ZZ KOMATSU	PC400-5	1550/1238	152	108/140	35-Φ26	40-M24	84	570
ZZ KOMATSU	PC450-5	1550/1238	152	108/140	35-Φ26	40-M24	84	570
ZZ KOMATSU	PC400-6	1563/1240	152	108/140	35-Φ29	40-M24	84	570
ZZ KOMATSU	PC400-7	1563/1240	152	108/140	35-Φ29	40-M24	84	570
ZZ KOMATSU	PC450-6	1563/1240	152	108/140	35-Φ29	40-M24	84	570
ZZ KOMATSU	PC450-7	1563/1240	152	108/140	35-Φ29	40-M24	84	570
ZZ KOMATSU	PC650	1794/1380	190	138/160	35-Φ33	44-Φ29	100	1100
ZZ KOMATSU	PC750	1798/1513	172	138/165	44-Φ33	48-Φ33	86	1100
ZZ KOMATSU	PC800-7	1978/1540	204	152/172	44-Φ33	48-Φ33	112	1260
ZZ KOMATSU	PC1250	2433/1953	237	167/200	44-Φ36	60-Φ36	132	2200

Brand	Model No.	OD/ID(mm)	Total thickness (mm)	O-ring/I-ring (mm)	Bolt holes/Out	Bolt holes/Inner	Teeth No.	N.W （KG)
ZZ KOBELCO	SK03	810/584	84	67/67	30-Φ17.5	30-Φ17.5	75	100
ZZ KOBELCO	SK60C	748/573.5	60	50/50	27-Φ14	24-Φ14	90	80
ZZ KOBELCO	SK60-5	810/586.5	84	67/67	25-17.5	30-17.5	75	100
ZZ KOBELCO	SK60-8	800/590	74	60/61	20-Φ17	20-Φ17	86	95
ZZ KOBELCO	SK75-8	810/586	82	65/65	24-Φ17	30-Φ17	75	100
ZZ KOBELCO	SK100	1093/880	85	60/75	28-Φ17	36-M16	89	150
ZZ KOBELCO	SK04	1094/880	85	60/75	28-Φ17.5	36-M16	112	150
ZZ KOBELCO	SK09	1163/970	81	57/71	35-Φ17	36-M16	123	140
ZZ KOBELCO	SK120-5	1093/880	85	60/75	28-Φ17	36-M16	89	150
ZZ KOBELCO	SK130-8	1129/920	85	60/75	34-Φ18	36-M16	93	160
ZZ KOBELCO	SK135	1129/920	85	60/75	34-Φ18	36-M16	93	160
ZZ KOBELCO	SK140-8	1129/920	85	60/75	34-Φ18	36-M16	93	160
ZZ KOBELCO	SK200-1	1311/1083	105	78/95	33-Φ22	36-M20X1.5	110	260
ZZ KOBELCO	SK200-2	1311/1083	105	78/95	33-Φ22	36-M20X1.5	110	260
ZZ KOBELCO	SK200-3	1311/1083	105	78/95	33-Φ22	36-M20X1.5	110	260
ZZ KOBELCO	SK200-5	1311/1083	105	78/95	33-Φ22	36-M20X1.5	110	260
ZZ KOBELCO	SK200-6	1311/1083	105	78/95	33-Φ22	36-M20X1.5	110	260
ZZ KOBELCO	SK210-6E	1311/1083	105	78/95	33-Φ22	36-M20X1.5	110	260
ZZ KOBELCO	SK200-8	1310/1082	108	76/98	33-Φ21	36-M20X1.5	110	260
ZZ KOBELCO	SK200-10	1310/1082	108	76/98	33-Φ21	36-M20X1.5	110	260
ZZ KOBELCO	SK07-1	1300/1085	95	70/85	32-Φ22	36-M20X1.5	110	260
ZZ KOBELCO	SK907B	1312/1083	105	78/95	32-Φ22	36-M20X1.5	110	260
ZZ KOBELCO	SK07-N2	1312/1083	95	78/95	32-Φ22	36-M20X1.5	110	260
ZZ KOBELCO	SK235	1410/1083	116	88/106	33-Φ22	36-M20X1.5	110	330
ZZ KOBELCO	SK230-6	1408/1134	122	88/111	33-Φ22	36-M20X1.5	82	330
ZZ KOBELCO	SK250-8	1418/1134	120	86/110	33-Φ22	36-M20X1.5	82	330
ZZ KOBELCO	SK260-8	1418/1134	120	86/110	33-Φ22	36-M20X1.5	82	330
ZZ KOBELCO	SK250-10	1418/1134	120	86/110	33-Φ22	36-M20X1.5	82	330
ZZ KOBELCO	SK260-10	1418/1134	120	86/110	33-Φ22	36-M20X1.5	82	330
ZZ KOBELCO	SK350-8	1614/1272	120	100/109	35-Φ26	36-M24X2	92	530
ZZ KOBELCO	SK350-10	1603/1272	120	100/110	35-Φ26	36-M24X2	92	530
ZZ KOBELCO	SK450-6E	1692/1312	130	108/120	36-Φ29	36-M27X2	84	660
ZZ KOBELCO	SK460-8	1807/1442	120	103/110	36-Φ29	36-M27X2	105	890

Brand	Model No.	OD/ID(mm)	Total thickness (mm)	O-ring/I-ring (mm)	Bolt holes/Out	Bolt holes/Inner	Teeth No.	N.W （KG)
ZZ HITACHI	EX40-1	615/446	59	40/50	24-Φ13.5	20-Φ13.5	76	50
ZZ HITACHI	EX60-1	781/554	78	60/65	24-Φ18	24-Φ18	71	100
ZZ HITACHI	EX60-2	781/554	78	60/65	24-Φ18	24-Φ18	71	100
ZZ HITACHI	EX60-3	781/554	78	60/65	24-Φ18	24-Φ18	71	100
ZZ HITACHI	EX60-5	774/554	78	60/65	24-Φ18	24-Φ18	71	96
ZZ HITACHI	EX70	774/554	78	60/65	24-Φ18	24-Φ18	71	96
ZZ HITACHI	EX90	993/764	80	62/68	28-Φ18	36-Φ18	78	120
ZZ HITACHI	EX100-1	1195/962	86	72/70	36-Φ19	36-Φ17	98	180
ZZ HITACHI	EX120-1	1195/962	86	72/70	36-Φ19	36-Φ17	98	180
ZZ HITACHI	EX120-2	1092/862	84	68/70	36-Φ20	36-Φ18	88	150
ZZ HITACHI	EX120-3	1092/862	84	68/70	36-Φ20	36-Φ18	88	150
ZZ HITACHI	EX120-5	1092/862	84	68/70	36-Φ20	36-Φ18	88	150
ZZ HITACHI	EX160	1195/939	97	73/81	36-Φ19	36-Φ19	80	180
ZZ HITACHI	EX200-1	1310/1084	106	75/95	36-Φ22	36-M20X1.5	92	240
ZZ HITACHI	EX200-2	1312/1083.5	106	72/95	36-Φ22	36-M20X1.5	92	240
ZZ HITACHI	EX200-3	1312/1083.5	106	72/95	36-Φ22	36-M20X1.5	92	240
ZZ HITACHI	EX200-5	1312/1083.5	106	72/95	36-Φ22	36-M20X1.5	92	240
ZZ HITACHI	EX210-5	1312/1083.5	106	72/95	36-Φ22	36-M20X1.5	92	240
ZZ HITACHI	EX220-5	1420/1138	108	84/98	36-Φ24	36-M22X1.5	83	330
ZZ HITACHI	EX300-1	1530/1234	117	91/105	32-Φ25	36-M24X2	90	450
ZZ HITACHI	EX300-2	1530/1249	115	91/105	32-Φ25	36-M24*2-7H	91	450
ZZ HITACHI	EX300-3	1530/1249	115	91/105	32-Φ25	36-M24*2-7H	91	450
ZZ HITACHI	EX300-5	1630/1297	120	95/110	36-Φ29	36-M27X2	83	640
ZZ HITACHI	EX400-1	1650/1274	130	118/110	36-Φ29	36-Φ29	107	690
ZZ HITACHI	EX400-3	1650/1274	130	118/110	36-Φ29	36-Φ29	107	690
ZZ HITACHI	ZAX60	756/574	66	52/56	27-Φ15.5	24-Φ15.5	90	80
ZZ HITACHI	ZAX60-3	756/574	70	50/60	33-Φ15.5	24-Φ15.5	90	80
ZZ HITACHI	ZAX70	806/593	73	60/60	25-Φ17.5	24-Φ17.5	76	90
ZZ HITACHI	ZAX80	806/593	73	60/60	25-Φ17.5	24-Φ17.5	76	90
ZZ HITACHI	ZAX120	1092/860	86	68/70	30-Φ20	36–Φ18	88	150
ZZ HITACHI	ZAX130	1092/860	86	68/70	30-Φ20	36–Φ18	88	150
ZZ HITACHI	ZX200	1312/1081	106	72/95	32-Φ21	36-M20X1.5	92	240
ZZ HITACHI	ZX210	1312/1081	106	72/95	32-Φ21	36-M20X1.5	92	240

Brand	Model No.	OD/ID (mm)	Total thickness (mm)	O-ring/I-ring (mm)	Bolt holes/Out	Bolt holes/Inner	Teeth No.	N.W （KG)
ZZ CATERPILLAR	CAT306	770/574	73	62/57	20-Φ18	18–Φ18	84	80
ZZ CATERPILLAR	CAT306E2	770/567	80	68/58	22-Φ18	26–Φ18	84	80
ZZ CATERPILLAR	CAT70B	810/585	84	67/67	25-Φ18	30-Φ18	75	100
ZZ CATERPILLAR	CAT307B	811/586	84	67/67	25-Φ18	30-Φ18	75	100
ZZ CATERPILLAR	CAT307C	810/586	83	63/63	29-Φ18	38-Φ18	75	100
ZZ CATERPILLAR	CAT307D	810/586	83	63/63	29-Φ18	38-Φ18	75	100
ZZ CATERPILLAR	CAT307E	810/586	83	63/63	29-Φ18	38-Φ18	75	100
ZZ CATERPILLAR	CAT308	810/586	84	67/67	25-Φ18	30-Φ18	75	100
ZZ CATERPILLAR	CAT308C	810/586	82	62/62	29-Φ18	38-Φ18	75	100
ZZ CATERPILLAR	CAT308E	810/586	83	63/63	29-Φ18	38-Φ18	75	100
ZZ CATERPILLAR	CAT310	902/663	95	76/70	36-Φ18	42-Φ18	76	120
ZZ CATERPILLAR	CAT110	1093/881	72	50/62	34-Φ18	38-M16	90	140
ZZ CATERPILLAR	CAT312C	1093/881	72	50/62	34-Φ18	38-M16	90	140
ZZ CATERPILLAR	CAT312D	1093/881	72	50/62	34-Φ18	38-M16	90	140
ZZ CATERPILLAR	CAT313D	1093/881	72	50/62	34-Φ18	38-M16	90	140
ZZ CATERPILLAR	CAT314	1093/881	72	50/62	34-Φ18	38-M16	90	140
ZZ CATERPILLAR	CAT120	1115/882	75	60/67	29-Φ18	30-M16	90	150
ZZ CATERPILLAR	CAT315D	1208/961	92	74/80	34-Φ22	36-M20	98	200
ZZ CATERPILLAR	CAT318D2	1208/961	92	74/84	34-Φ22	36-M20	98	200
ZZ CATERPILLAR	CAT200B	1307.5/1082	100	85/87	33-M20	36-M20	110	250
ZZ CATERPILLAR	CAT312B	1115/882	75	60/67	29-Φ18	30-M16	90	150
ZZ CATERPILLAR	CAT320B	1316/1082	100	85/87	33-Φ22	36-M20	110	250
ZZ CATERPILLAR	CAT320C	1316/1081	105	73/93	42-Φ22	40-M20	110	250
ZZ CATERPILLAR	CAT320D	1316/1081	105	73/93	42-Φ22	40-M20	110	250
ZZ CATERPILLAR	CAT320L	1316/1084	105	85/92	38-Φ22	36-M20	110	250
ZZ CATERPILLAR	CAT324L	1459/1164	110	87.5/95	34-Φ22	36-M24	85	360
ZZ CATERPILLAR	CAT326F	1459/1164	110	87.5/95	34-Φ22	36-M24	85	360
ZZ CATERPILLAR	CAT325B	1495/1164	110	93/95	35-Φ26	38-M24	85	400
ZZ CATERPILLAR	CAT325C	1495/1164.2	110	93/95	38-Φ26	42-M24	85	400
ZZ CATERPILLAR	CAT330GC	1495/1164.2	110	93/95	38-Φ26	42-M24	85	400
ZZ CATERPILLAR	CAT330B	1665/1313	138	100/123	36-Φ26	40-M24	84	650
ZZ CATERPILLAR	CAT330C	1665/1312	138	100/123	42-Φ26	46-M24	84	650
ZZ CATERPILLAR	CAT336GC	1665/1312	138	100/123	42-Φ26	46-M24	84	650
ZZ CATERPILLAR	CAT336D	1673/1313	138	100/123	46-Φ26	52-M24	84	680
ZZ CATERPILLAR	CAT345C	1678/1316	141	105/125	54-Φ26	70-M24	96	680
ZZ CATERPILLAR	CAT374D	1820/1344	182	147/148	37-Φ33	60-Φ33	98	1100
ZZ CATERPILLAR	CAT390D	1952/1458	215	170/180	48-Φ33	74-Φ33	93	1500
ZZ CATERPILLAR	CAT6015	2175/1736	230	150/200	48-Φ30	48-Φ30	97	2500

Brand	Model No.	OD/ID (mm)	Total thickness (mm)	O-ring/I-ring (mm)	Bolt holes/Out	Bolt holes/Inner	Teeth No.	N.W （KG)
ZZ IHI	IHI60	845/648	57	48/50	20-Φ17	20-Φ17	110	100
ZZ IHI	IHI80	973/785	82	55/71	30-Φ17	30-Φ17	100	120
ZZ IHI	IHI100	1000/786	86	65/77	30-Φ17	30-Φ17	100	150

Brand	Model No.	OD/ID(mm)	Total thickness(mm)	O-ring/I-ring(mm)	Bolt holes/Out	Bolt holes/Inner	Teeth No.	N.W（KG)
ZZ TAKEUCHI	TB60	845/649	65	48/58	20-Φ17	20-Φ17	110	100
ZZ TAKEUCHI	TB175	974/785	78	60/63	30-Φ18	34-Φ18	100	120
ZZ TAKEUCHI	TB1140	1133/861	90	74/74	30-Φ20	36-Φ20	88	200

Brand	Model No.	OD/ID(mm)	Total thickness (mm)	O-ring/I-ring (mm)	Bolt holes/Out	Bolt holes/Inner	Teeth No.	N.W（KG)
ZZ JOHN DEER	E140	1140/890	80	65/70	47-Φ18	45-M16	90	150
ZZ JOHN DEER	E210	1347/1034	105	73/95	37-Φ22	36-M22	88	300
ZZ JOHN DEER	E260	1363/1049	105	82/95	36-Φ24	36-M22	88	360
ZZ JOHN DEER	E300	1536/1218	120	95/110	42-Φ24	42-M24	88	460
ZZ JOHN DEER	E360	1557/1218	120	95/110	48-Φ26	42-M24	88	480

Brand	Model No.	OD/ID (mm)	Total thickness (mm)	O-ring/I-ring (mm)	Bolt holes/Out	Bolt holes/Inner	Teeth No.	N.W （KG)
ZZ LIEBHERR	R904	1187/961	73	48/65	40-Φ22	40-M20	106	140
ZZ LIEBHERR	R916	1310/1040	93	48/85	40-Φ22	48-M20	104	200
ZZ LIEBHERR	R914	1215/940	115	72/105	48-Φ22	56-M22	94	260
ZZ LIEBHERR	R924	1215/940	115	72/105	48-Φ22	56-M22	94	260
ZZ LIEBHERR	R934	1354/1010	125	92/114	40-Φ26	48-M24	92	330
ZZ LIEBHERR	R944B	1365/1008	150	112/140	60-Φ26	72-M24	84	500
ZZ LIEBHERR	R944C	1450/1116	145	110/135	50-Φ30	60-M27	93	530
ZZ LIEBHERR	R954C	1480/1108	155	110/145	50-Φ30	60-M27	80	580
ZZ LIEBHERR	R984	2555/2078	215	130/200	60-Φ33	60-M30	104	23000

Brand	Model No.	OD/ID (mm)	Total thickness (mm)	O-ring/I-ring (mm)	Bolt holes/Out	Bolt holes/Inner	Teeth No.	N.W （KG)
ZZ VOLVO	EC55	800/590	74	60/61	20-Φ17	20-Φ17	86	95
ZZ VOLVO	EC140B	1195/962	85	75/70	36-Φ19	36-M16	98	180
ZZ VOLVO	EC160B	1200/963	99	72/82	32-Φ21.5	36-M20	98	200
ZZ VOLVO	EC210	1327/1082	110	90/90	33-Φ21	36-M20	92	260
ZZ VOLVO	EC210B	1327/1083	108	90/90	34-Φ21	36-M20	92	260
ZZ VOLVO	EC240	1460/1164	120	95/105	33-Φ24	36-M22	85	260
ZZ VOLVO	EC290	1530/1236	122	90/113	35-Φ26	40-M24	90	460
ZZ VOLVO	EC300	1530/1236	122	90/113	35-Φ26	40-M24	90	460
ZZ VOLVO	EC360	1552/1234	147	108/135	35-Φ26	40-M24	90	550
ZZ VOLVO	EC480	1777/1392	120	110/110	40-Φ33	40-M30	118	680
ZZ VOLVO	EC700	1815/1373	205	147/180	48-Φ33	60-Φ33	100	1200

Brand	Model No.	OD/ID (mm)	Total thickness (mm)	O-ring/I-ring (mm)	Bolt holes/Out	Bolt holes/Inner	Teeth No.	N.W（KG)
ZZ KUBOTA	U15	458/320	35	30/30	16-M12	18-M12	73	30
ZZ KUBOTA	U20	459.4/320.6	40.5	35/30.5	18-M12	18-Φ13	82	45
ZZ KUBOTA	KX135	599/429	45	40/40	19-M16*1.5	16-M16*1.5	80	60
ZZ KUBOTA	KX151	694/497	60	50/50	24-M16*1.5	24-M16*1.5	78	80
ZZ KUBOTA	KX161	694/497	60	50/50	24-M16*1.5	24-M16*1.5	78	80
ZZ KUBOTA	KX165	770/574	61	47/52	24-M16*1.5	24-M16*1.5	84	80
ZZ KUBOTA	KX175	990/785	71	53/63	27-M16X1.5	30-M16X1.5	100	130
ZZ KUBOTA	KX185	990/784	73	52/63	30-M16X1.5	36-M16X1.5	100	130

Brand	Model No.	OD/ID (mm)	Total thickness (mm)	O-ring/I-ring (mm)	Bolt holes/Out	Bolt holes/Inner	Teeth No.	N.W （KG)
ZZ JCB	JCB8056	852/649	70	55/60	24-Φ18	24-M16	109	100
ZZ JCB	JS140	1172/972	88	56/77	32-Φ19	36-M16	98	160
ZZ JCB	JS220	1328/1094	102	74/92	31-Φ22	36-M20	92	260
ZZ JCB	JS240	1375/1094	124	80/114	26-Φ26	36-M24	92	330

Brand	Model No.	OD/ID (mm)	Total thickness (mm)	O-ring/I-ring (mm)	Bolt holes/Out	Bolt holes/Inner	Teeth No.	N.W （KG)
ZZ CASE	CASE55	834/649	63	48/55	20-Φ16	20-Φ16	110	100
ZZ CASE	CASE130	1172/972	88	65/77	32-Φ19	36-M16	98	160
ZZ CASE	CASE210	1330/1093	102	74/92	31-Φ22	36-M20	92	260
ZZ CASE	CASE360	1616/1274	120	100/110	41-Φ26	46-M24	92	560

Brand	Model No.	OD/ID (mm)	Total thickness (mm)	O-ring/I-ring (mm)	Bolt holes/Out	Bolt holes/Inner	Teeth No.	N.W （KG)
ZZ SUMITOMO	SH60-1	766/560	97	58/80	21-Φ17	20-Φ17	71	100
ZZ SUMITOMO	SH120A1	1171/973	88	56/78	28-Φ18	36-M16	98	160
ZZ SUMITOMO	SH120-1	1171/973	88	56/78	28-Φ18	36-M16	98	160
ZZ SUMITOMO	SH120A2	1171/973	88	56/78	28-Φ18	36-M16	98	160
ZZ SUMITOMO	SH120-2	1171/973	88	56/78	28-Φ18	36-M16	98	160
ZZ SUMITOMO	SH120A3	1171/973	80	56/69	28-Φ18	36-M16	98	160
ZZ SUMITOMO	SH120-3	1171/973	80	56/69	28-Φ18	36-M16	98	160
ZZ SUMITOMO	SH120Z3	1172/973	87	65/78	28-Φ18	36-M16	98	160
ZZ SUMITOMO	SH120C3	1172/973	87	65/78	28-Φ18	36-M16	98	160
ZZ SUMITOMO	SH135	1070/852	101	60/90	28-Φ22	36-M16	86	160
ZZ SUMITOMO	SH140	1171/973	88	56/78	28-Φ18	36-M16	98	160
ZZ SUMITOMO	SH145	1171/973	88	56/78	28-Φ18	36-M16	98	160
ZZ SUMITOMO	SH160	1327/1093	94	61/84	31-Φ22	36-M20	92	230
ZZ SUMITOMO	SH260	1171/973	84	56/75	28-Φ18	36-M16	98	160
ZZ SUMITOMO	SH265	1171/973	84	56/75	28-Φ18	36-M16	98	160
ZZ SUMITOMO	SH200A1	1330/1093	102	74/92	31-Φ22	36-M20	92	250
ZZ SUMITOMO	SH200A2	1330/1093	102	74/92	31-Φ22	36-M20	92	250
ZZ SUMITOMO	SH200A3	1330/1093	102	74/92	31-Φ22	36-M20	92	250
ZZ SUMITOMO	SH200C2	1330/1093	102	74/92	31-Φ22	36-M20	92	250
ZZ SUMITOMO	SH200C3	1330/1093	102	74/92	31-Φ22	36-M20	92	250
ZZ SUMITOMO	SH200Z3	1330/1093	102	74/92	31-Φ22	36-M20	92	250
ZZ SUMITOMO	SH220	1375/1094	121	80/110	36-Φ26	36-M24	92	250
ZZ SUMITOMO	SH240-5	1377/1094	123	88/113	28-Φ26	36-M24	92	250
ZZ SUMITOMO	SH240-3	1377/1094	123	88/113	27-Φ26	36-M24	92	250
ZZ SUMITOMO	SH225	1330/1093	102	74/92	32-Φ22	36-M20	92	250
ZZ SUMITOMO	SH280	1315/1083	99	65/88	32-Φ22	36-M20	92	250
ZZ SUMITOMO	SH300-2	1510/1193	135	100/125	38-Φ26	30-M24	86	450
ZZ SUMITOMO	SH330	1510/1192	135	100/125	38-Φ26	43-M24	86	450
ZZ SUMITOMO	SH350	1616/1274	120	100/110	41-Φ26	46-M24	92	550
ZZ SUMITOMO	SH430	1464/1192	135	78/125	36-Φ26	30-M24	86	420
ZZ SUMITOMO	SH460	1616/1274	145	125/130	41-Φ26	46-M24	92	650
ZZ SUMITOMO	SH580	1547/1263	147	90/135	36-Φ27	36-M24	92	430

Brand	Model No.	OD/ID (mm)	Total thickness (mm)	O-ring/I-ring (mm)	Bolt holes/Out	Bolt holes/Inner	Teeth No.	N.W （KG)
ZZ KATO	HD250-7	810/584	84	67/67	30-Φ17	30-Φ17	75	100
ZZ KATO	HD450-5	1111/873	75	65/62	30-Φ18	30-Φ18	89	150
ZZ KATO	HD450-7	1111/873	75	65/62	30-Φ18	30-Φ18	89	150
ZZ KATO	HD512	1111/873	75	65/62	30-Φ18	30-Φ18	89	150
ZZ KATO	HD513	1111/873	75	65/62	30-Φ18	30-Φ18	89	150
ZZ KATO	HD516	1111/873	75	65/62	30-Φ18	30-Φ18	89	150
ZZ KATO	HD550	1163/961	94	66/84	36-Φ18	36-M16X1.5	98	180
ZZ KATO	HD100	1111/873	75	65/62	30-Φ18	30-Φ18	89	150
ZZ KATO	HD700-5	1300/1084	110	89/94	35-M20	36-M20	92	250
ZZ KATO	HD700-7	1320/1080	95	70/85	36-Φ22	36-M20	92	250
ZZ KATO	HD770SE	1402/1132	97	80/80	36-Φ21	36-M20	96	320
ZZ KATO	HD770-1	1402/1132	97	80/80	36-Φ21	36-M20	96	320
ZZ KATO	HD770-2	1402/1132	97	80/80	36-Φ21	36-M20	96	320
ZZ KATO	HD800-7	1402/1132	97	80/80	36-Φ22	36-M20	96	320
ZZ KATO	HD800-5	1402/1132	97	80/80	36-Φ22	36-M20	96	320
ZZ KATO	HD820-3	1320/1080	95	70/85	36-Φ22	36-M20	92	250
ZZ KATO	HD820-1	1320/1080	95	70/85	36-Φ22	36-M20	92	250
ZZ KATO	HD900-7	1402/1132	97	80/80	36-Φ22	36-M20	96	320
ZZ KATO	HD1023	1402/1132	97	80/80	36-Φ22	36-M20	96	320
ZZ KATO	HD1250	1595/1277	111	90/100	36-Φ26	36-M24	92	320

Brand	Model No.	OD/ID(mm)	Total thickness (mm)	O-ring/I-ring (mm)	Bolt holes/Out	Bolt holes/Inner	Teeth No.	N.W （KG)
ZZ DOOSAN	DH55-5	812/616	75	65/65	24-Φ18	24-Φ18	90	95
ZZ DOOSAN	DX60	812/616	75	65/65	24-Φ18	24-Φ18	90	95
ZZ DOOSAN	DH60	812/616	75	65/65	24-Φ18	24-Φ18	90	95
ZZ DOOSAN	DH80GO	902/640	82	72/65	24-Φ20	24-M18	82	120
ZZ DOOSAN	DH80-7	902/640	82	72/65	24-Φ20	24-M18	82	120
ZZ DOOSAN	DH150	1202/947	80	75/70	36-Φ22	36-M20*1.5	80	200
ZZ DOOSAN	DX120	1202/945	80	75/70	36-Φ22	36-M20*1.5	80	200
ZZ DOOSAN	DX150	1202/945	80	75/70	36-Φ22	36-M20*1.5	80	200
ZZ DOOSAN	DX180	1202/945	82	75/70	36-Φ22	36-M20*1.5	80	200
ZZ DOOSAN	DH200-3	1302/1084	110	80/98	36-Φ20	36-M20	89	250
ZZ DOOSAN	DH220-2	1310/1084	110	80/95	36-Φ21	36-M20X1.5	79	250
ZZ DOOSAN	DH220-3	1310/1084	110	80/95	36-Φ21	36-M20X1.5	79	250
ZZ DOOSAN	DH220-5	1327/1084	111	88/95	36-Φ21	36-M20X1.5	92	270
ZZ DOOSAN	DH220-7LC	1327/1084	111	88/95	36-Φ21	36-M20X1.5	92	270
ZZ DOOSAN	DH220-9	1327/1084	111	88/95	36-Φ21	36-M20X1.5	92	270
ZZ DOOSAN	DH215-7	1327/1084	111	88/95	36-Φ21	36-M20X1.5	92	270
ZZ DOOSAN	DH215-9	1327/1084	111	88/95	36-Φ21	36-M20X1.5	92	270
ZZ DOOSAN	DH225-7	1327/1084	110	90/95	36-Φ21	36-M20	92	270
ZZ DOOSAN	DH225-9	1327/1084	110	90/95	36-Φ21	36-M20	92	270
ZZ DOOSAN	DX225-9	1327/1084	110	90/95	36-Φ21	36-M20	92	270
ZZ DOOSAN	DH258	1410/1134	117	88/104	35-Φ25	36-M24	82	330
ZZ DOOSAN	DX260	1410/1132	117	88/104	35-Φ25	36-M24	82	330
ZZ DOOSAN	DH280	1460/1162	120	95/105	35-Φ25	36-M24	85	400
ZZ DOOSAN	DH290	1460/1162	120	95/105	35-Φ25	36-M24	85	400
ZZ DOOSAN	DH300-5	1460/1162	120	95/105	35-Φ25	36-M24	85	400
ZZ DOOSAN	DH300-7	1464/1165	120	95/110	35-Φ26	36-M24	85	400
ZZ DOOSAN	DX300	1476/1165	120	80/110	35-Φ26	36-M24	85	400
ZZ DOOSAN	DH10L	1526/1236	122	87/110	35-Φ26	40-M24	90	430
ZZ DOOSAN	DH320	1526/1236	122	87/110	35-Φ26	40-M24	90	430
ZZ DOOSAN	DH330-3	1526/1236	122	87/110	35-Φ26	40-M24	90	430
ZZ DOOSAN	DH340	1526/1236	122	87/110	35-Φ26	40-M24	90	430
ZZ DOOSAN	DX340	1544/1234	120	87/110	35-Φ26	40-M24	90	460
ZZ DOOSAN	S340-V	1544/1236	122	87/110	35-Φ26	40-M24	90	460
ZZ DOOSAN	DH370-7	1551/1234	132	103/120	35-Φ25	40-M24	90	500
ZZ DOOSAN	DX380	1585/1235	132	101/120	40-Φ25	40-M24	90	560
ZZ DOOSAN	DH420	1551/1234	132	103/120	35-Φ25	40-M24	90	500
ZZ DOOSAN	DX420	1551/1234	132	103/120	35-Φ25	40-M24	90	500
ZZ DOOSAN	DH500	1682/1319	138	119/110	44-Φ25	44-Φ25	111	600
ZZ DOOSAN	DX500	1682/1319	138	119/110	44-Φ25	44-Φ25	111	600

Brand	Model No.	OD/ID (mm)	Total thickness (mm)	O-ring/I-ring (mm)	Bolt holes/Out	Bolt holes/Inner	Teeth No.	N.W （KG)
ZZ HYUNDAI	R60-5	800/573	70	56/60	20-Φ17	20-Φ17	90	95
ZZ HYUNDAI	R60-7	800/590	74	60/61	20-Φ17	20-Φ17	86	95
ZZ HYUNDAI	R80-7	900/665	85	70/70	30-Φ17	30-Φ17	85	120
ZZ HYUNDAI	R110-7	1095/863	80	70/70	36-Φ19	36-M16	88	180
ZZ HYUNDAI	R130-5	1195/962	85	75/70	36-Φ19	36-M16	98	180
ZZ HYUNDAI	R130-7	1195/962	85	75/70	36-Φ19	36-M16	98	180
ZZ HYUNDAI	R140-7	1195/962	90	80/80	36-Φ19	36-M16	98	190
ZZ HYUNDAI	R150-9	1195/962	90	80/80	36-Φ19	36-M16	98	190
ZZ HYUNDAI	R160	1328/1083	111	80/94	28-Φ22	36-M20	92	260
ZZ HYUNDAI	R190	1328/1083	111	80/94	28-Φ22	36-M20	92	260
ZZ HYUNDAI	R200-5	1328/1083	111	80/94	28-Φ22	36-M20	92	260
ZZ HYUNDAI	R210	1328/1083	111	80/94	28-Φ22	36-M20	92	260
ZZ HYUNDAI	R210-5	1328/1083	111	80/94	28-Φ22	36-M20	92	260
ZZ HYUNDAI	R210-3	1328/1083	111	80/94	28-Φ22	36-M20	92	260
ZZ HYUNDAI	R205VS	1327/1083	110	89/94	30-Φ22	36-M20	92	270
ZZ HYUNDAI	R200-7	1327/1083	110	89/94	30-Φ22	36-M20	92	270
ZZ HYUNDAI	R210-7	1327/1083	110	89/94	30-Φ22	36-M20	92	270
ZZ HYUNDAI	R215-7	1327/1083	110	89/94	30-Φ22	36-M20	92	270
ZZ HYUNDAI	R215VS	1327/1083	110	89/94	30-Φ22	36-M20	92	270
ZZ HYUNDAI	R220-5	1328/1083	111	80/94	28-Φ22	36-M20	92	270
ZZ HYUNDAI	R225-7	1327/1083	110	89/94	30-Φ22	36-M20	92	270
ZZ HYUNDAI	R225-9	1327/1083	110	89/94	30-Φ22	36-M20	92	270
ZZ HYUNDAI	R250LC-7	1410/1132	122	88/109	34-Φ23	36-M24	82	350
ZZ HYUNDAI	R260LC-7	1410/1132	122	88/109	34-Φ23	36-M24	82	350
ZZ HYUNDAI	R265LC-7	1410/1132	122	88/109	34-Φ23	36-M24	82	350
ZZ HYUNDAI	R275LC-9	1410/1132	122	88/109	34-Φ23	36-M24	82	350
ZZ HYUNDAI	R290	1526/1236	122	87/110	35-Φ26	40-M24	90	390
ZZ HYUNDAI	R300	1526/1236	122	87/110	35-Φ26	40-M24	90	390
ZZ HYUNDAI	R290-7	1526/1235	122	97/110	38-Φ26	40-M24	90	430
ZZ HYUNDAI	R305-7	1526/1235	122	97/110	38-Φ26	40-M24	90	430
ZZ HYUNDAI	R305-9	1526/1235	122	97/110	38-Φ26	40-M24	90	430
ZZ HYUNDAI	R320-7	1526/1235	122	97/110	38-Φ26	40-M24	90	430
ZZ HYUNDAI	R335-7	1526/1235	122	97/110	38-Φ26	40-M24	90	430
ZZ HYUNDAI	R330-9S	1526/1235	132	102/120	38-Φ26	40-M24	90	480
ZZ HYUNDAI	R360	1550/1234	147	108/135	35-Φ26	40-M24	90	560
ZZ HYUNDAI	R375	1550/1234	147	108/135	35-Φ26	40-M24	90	560
ZZ HYUNDAI	R385	1550/1234	147	108/135	35-Φ26	40-M24	90	560
ZZ HYUNDAI	R395	1550/1234	147	108/135	35-Φ26	40-M24	90	560
ZZ HYUNDAI	R450-7	1675/1346	132	108/120	46-Φ25	44-M24	114	580
ZZ HYUNDAI	R455-9	1675/1346	132	108/120	46-Φ25	44-M24	114	580
ZZ HYUNDAI	R450-9	1775/1395	128	108/116	52-Φ26	48-M24	118	720
ZZ HYUNDAI	R500-9	1775/1395	128	108/116	52-Φ26	48-M24	118	720
ZZ HYUNDAI	R520	1775/1395	128	108/116	52-Φ26	48-M24	118	720

ZZ Slewing Bearing

Cada vez más industrias elige ZZ

Mejoramos e innovamos constantemente para que su aplicación sea más eficaz y rápida.

¿Necesita consulta? ¿Necesita consulta? ¿Necesita consulta? ¿Necesita consulta? ¿Necesita consulta?

Últimas noticias

4 Dic

Asistencia técnica

andy

Limitado Stock Liquidación! Aprovecha UNIC 330 Rodamientos giratorios a un ¡PRECIO SUPERBAJO!

Oferta Aspectos destacados: ✅ Stock limitado: solo quedan 50 unidades. ✅ Gran descuento: muy por debajo del preci

16 Jul

Asistencia técnica

andy

Interno Engranaje Giratorio Anillo para Excavadora Compacta – Solución de y duradera rotación que ahorra espacio

Para excavadoras compactas, el espacio es siempre una limitación , pero una fiable rotación es esencial. Por eso es

8 Jul

Asistencia técnica

andy

Corona giratoria de alta resistencia para grúa de alta mar – Diseñada para condiciones marinas adversas

El funcionamiento en entornos marinos exige equipos que no sólo sean potentes , sino que también estén construidos

Rodamiento giratorio para excavadora duradero y estable

Cada vez más industrias elige ZZ

Industries

prodcuts

Recent news

Limitado Stock Liquidación! Aprovecha UNIC 330 Rodamientos giratorios a un ¡PRECIO SUPERBAJO!

Interno Engranaje Giratorio Anillo para Excavadora Compacta – Solución de y duradera rotación que ahorra espacio
