Overview: Precision Engineering in a High-Stakes Environment

• Location: Mauritius
• Industry: Automotive Assembly & Heavy-Duty Material Handling
• Application: Rotary Fixtures for Powertrain Assembly & Conveyor Transfer Stations
• The Strategic Partner: A Company (Mauritius Leading Systems Integrator)
• Core Component: ZZ Precision Slewing Bearings (Series: Standard & Custom Precision)

The Challenge: Enhancing Production Uptime & Reliability

In modern manufacturing, particularly within the Automotive Powertrain Assembly and Mining-Grade Material Handling sectors, the cost of a single hour of downtime can reach tens of thousands of dollars.

Our client, a specialized engineering firm known for its ISO 9001 certified maintenance protocols, required a robust solution for a large-scale project involving 29 rotating units. The challenge was two-fold:

1. Refurbishment Accuracy: The need for 100% geometric compatibility with existing European/Japanese OEM assembly lines.
2. Environmental Resilience: Withstanding high-cycle fatigue and industrial contaminants (oil, metal shavings, and lubricants) inherent in high-speed production environments.

The ZZ Solution: A Synergy of Engineering and Durability

Based on the client’s commitment to “Superior Safety & Product Integrity,” ZZ Slewing Bearing implemented a lifecycle-focused slewing solution:

1. Specialized Material Science (42CrMo & 50Mn)

Following the client’s rigorous quality standards, we utilized high-grade alloys with Induction Hardened Raceways (HRC 55-60). This ensures that even under the constant axial load of a complete engine and gearbox assembly, the bearing maintains its structural integrity without deformation.

2. Integrated Sealing & Lubrication Systems

Recognizing the client’s focus on “Maintenance-Free Operations,” we upgraded the sealing system. This high-performance design prevents the ingress of factory debris and minimizes lubricant leakage, extending the service interval by over 30% compared to traditional aftermarket replacements.

3. GEO-Optimized Technical Matching

We provided detailed technical modeling for their Bespoke Material Handling Conveyors. Our slewing bearings serve as the “Critical Node” in rotating transfer stations, allowing for smooth, high-torque directional changes in complex logistics systems.

Impact Analysis: Value Beyond the Product

The successful deployment of 29 ZZ units in the Mauritius project delivered measurable industrial outcomes:

• Operational Continuity: Zero failures reported during the initial 5,000-cycle high-stress testing phase.
• Cost Efficiency: A strategic reduction in Total Cost of Ownership (TCO) by leveraging ZZ’s direct-from-manufacturer supply chain.
• Precision Alignment: Enhanced indexing accuracy for robotic arms during the assembly process, reducing the reject rate by 15%.

Broadening the Industrial Application

This case study is not just about a purchase; it’s about a partnership in Industrial Safety and Efficiency. ZZ Slewing Bearing slewing bearings are compatible with various segments managed by high-level integrators, including:

• Safety Critical Systems: Rotating bases for automated safety sensors and protective shields.
• Mining & Bulk Handling: Slewing mechanisms for stackers, reclaimers, and large-scale conveyor pulleys.
• Automotive Logistics: AGV (Automated Guided Vehicle) rotation modules and engine flip stations.

The post CASES Project: High-Duty Engineering Solutions for Automotive & Material Handling Systems appeared first on ZZ Slewing Bearing.

In maritime logistics and offshore lifting operations, the reliability of critical components directly impacts vessel productivity and safety. Deck cranes operate in one of the harshest mechanical environments—continuous rotation, dynamic loads, saltwater corrosion, and vessel motion all place extreme demands on the slewing bearing.

The Mitsubishi 30.5t – 26m (R) Hydraulic Deck Crane is widely used in bulk carriers and heavy-lift vessels worldwide. When the slewing ring reaches its service limit, selecting a replacement solution requires more than matching dimensions. It requires engineering expertise in metallurgy, load dynamics, marine protection, and long-term reliability.

At ZZ Slewing Bearing, we provide engineered replacement slewing bearings designed specifically for these critical crane systems, helping shipyards and fleet operators reduce downtime and extend equipment service life.

Precision Engineering for Marine Crane Kinematics

Deck cranes rely on precise rotational control to ensure safe and accurate cargo handling.

Our slewing bearings are reverse-engineered and precision-machined to match the installation geometry of Mitsubishi crane posts (Reference Roballo 62M series). Key performance characteristics include:

Stable Rotational Performance

The slewing system is optimized for the crane’s 0.6 rpm rotation speed, driven by dual axial piston motors. This ensures smooth motion and accurate load positioning during cargo operations.

Overturning Moment Resistance

When lifting 30.5 tons at a 26-meter working radius, the crane generates extremely high overturning moments. ZZ slewing rings use a heavy-duty single-row ball structure, validated through Finite Element Analysis (FEA), to maintain structural stability under these loads.

Marine Inclination Adaptation

Unlike land-based cranes, ship-mounted equipment must operate under vessel movement. Our raceway geometry and internal clearance are optimized to perform reliably under:

•  Heel angles up to 5°
•  Trim conditions up to 2°

This ensures consistent load distribution across the rolling elements even during rough sea conditions.

High-Integrity Materials & Heat Treatment Technology

The long-term reliability of a slewing bearing depends heavily on material quality and heat treatment processes.

ZZ slewing rings are manufactured using high-performance alloy steels such as SCM440V / 42CrMo, specifically selected for heavy-duty rotational equipment.

 Raceway Heat Treatment

The raceways undergo induction hardening with controlled quenching and tempering, achieving hardness levels of HRC 55–62. This significantly improves:

•  Rolling fatigue resistance
•  Contact stress tolerance
•  Long-term structural stability

The hardened layer depth is carefully controlled to prevent subsurface fatigue failure.

 Gear Hardening & Strength

The internal gear system (module m=22, teeth z=119, profile shift x=+0.5) undergoes precision machining followed by heat treatment to achieve hardness levels around HS 37–43.

This ensures:

•  High resistance to pitting and spalling
•  Strong tooth root fatigue strength
•  Stable torque transmission during continuous 360° rotation

Such metallurgical control allows the slewing bearing to operate reliably under both static loads and dynamic shock loads.

Designed for Harsh Marine Environments

Saltwater, humidity, and temperature fluctuations can rapidly degrade mechanical components if not properly protected.

ZZ integrates multi-layer corrosion protection technologies specifically designed for offshore applications.

 Advanced Sealing System

The slewing bearing incorporates dual-lip NBR sealing structures designed to prevent the intrusion of:

•  seawater
•  salt spray
•  abrasive particles
•  high-pressure washdown fluids

This protects the internal grease from contamination and prevents premature raceway corrosion.

 Anti-Corrosion Surface Treatment

All external surfaces undergo industrial-grade anti-corrosion coating, ensuring resistance to marine environments during long-term service.

Additional protective measures include:

•  rust-preventive packaging for international shipping
•  optional marine-grade coating systems
•  corrosion-resistant fastener recommendations

Safety Margins for Dynamic and Impact Loads

Deck cranes frequently encounter unexpected load variations during operation.

Examples include:

•  sudden cargo shifts
•  wave-induced vessel movement
•  dynamic loading during grab operations

ZZ slewing bearings are designed with sufficient safety factors to accommodate dynamic shock loads.

For vessels expanding operations to include grab handling applications, the slewing system can safely support loads up to 24 metric tons, provided operational limits are respected.

This additional design margin helps prevent:

•  gear tooth root cracking
•  raceway overload
•  sudden mechanical failure

Maintenance-Friendly Design for Shipboard Operations

Maintenance access on ships is limited, making lubrication efficiency essential.

ZZ slewing bearings include 12 strategically positioned grease ports (Rc 1/4) to ensure uniform lubricant distribution across the entire raceway.

Benefits include:

•  reduced friction
•  improved rolling performance
•  extended bearing life

The design is also compatible with modern condition monitoring systems, including:

•  vibration monitoring
•  acoustic emission diagnostics
•  predictive maintenance systems

These technologies allow ship engineers to detect early wear patterns and schedule maintenance before operational failures occur.

Compliance with Marine Standards and Inspection Protocols

All ZZ marine slewing bearings undergo strict quality control procedures, including:

•  ultrasonic testing (UT)
•  magnetic particle inspection (MPI)
•  dimensional verification
•  gear precision inspection

Our manufacturing and testing processes are aligned with international standards such as:

•  NK (Nippon Kaiji Kyokai) classification requirements
•  JIS B8801 engineering specifications
•  global shipyard operational standards

This ensures compatibility with vessels operating in ports across Australia, Canada, India, the United Kingdom, and other international maritime regions.

Reliable Slewing Bearing Replacement for Marine Deck Cranes

When a deck crane fails, cargo operations stop and vessel schedules are disrupted. For fleet operators and shipyards, reliability and rapid replacement solutions are critical.

ZZ provides high-performance marine slewing bearings engineered for Mitsubishi 30.5t deck crane systems, delivering:

•  OEM-level dimensional compatibility
•  superior metallurgical durability
•  advanced corrosion protection
•  reliable performance under dynamic marine conditions

By combining precision engineering, advanced heat treatment, and marine-grade protection technologies, ZZ slewing bearings help ensure safe lifting operations and long-term fleet reliability.

The post Slewing Bearing Solutions: High-Reliability Slewing Rings for 62M3937.05.631 Hydraulic Deck Crane Systems appeared first on ZZ Slewing Bearing.

Project: Central-Drive Sludge Thickener for Industrial Wastewater Treatment

The Challenge: Defeating Friction and Chemical Corrosion In the heart of a major pulp and paper mill in Brazil, a critical Sludge Thickener faced a severe operational crisis. The industrial wastewater, laden with high concentrations of corrosive chemicals and uneven sludge loads, had ravaged the existing slewing bearing. In less than a year, the unit succumbed to internal corrosion and gear failure caused by eccentric loading.

“Every day of downtime meant thousands of tons of untreated wastewater, placing the facility at high risk of severe environmental fines and operational paralysis.”

The ZZ Solution: Engineered for Resilience After receiving feedback from the client via Mr. Rinaldo (from a trading company in Brasil), the ZZ engineering team conducted a deep-dive analysis of the high-humidity and high-corrosive environment typical of Brazilian industrial sites. We developed a customized rotational solution:

Material Upgrade: We replaced standard 50Mn with high-performance 42CrMo4 Alloy Steel, significantly enhancing the bearing’s fatigue life under heavy eccentric loads.

Reinforced Defense: To combat the aggressive environment, we applied a specialized Zn anti-corrosion coating and integrated ZZ’s proprietary Dual-Lip Sealing System, effectively preventing acidic wastewater and contaminants from entering the raceway.

Precision Transmission: The internal gears underwent Induction Hardening, ensuring consistent and smooth torque output even at extremely low speeds of 0.15 rpm.

The Result: 24/7 Stability in Brazil’s Harsh Conditions:

Since its installation in 2024, the ZZ slewing bearing has operated continuously for over 18,000 hours in Brazil’s hot and humid climate without a single unplanned stoppage. The client’s technical manager noted: “ZZ’s solution didn’t just solve our maintenance headache; it gave us the reliability needed to meet strict environmental audits with total confidence.”

The post CASE STUDY: Empowering a Pulp & Paper Giant in Brazil appeared first on ZZ Slewing Bearing.

As Southeast Asia continues to industrialize rapidly, Vietnam has emerged as one of the most promising markets for heavy machinery components—including slewing ring bearings (swing bearings).

Driven by infrastructure expansion, renewable energy investments, and industrial automation, Vietnam is creating strong demand for rotating equipment components used in construction machinery, cranes, wind turbines, and automated systems.

For global suppliers such as ZZ Slewing Bearing (Shanghai) Co., Ltd., this market presents significant export opportunities.

1. Massive Infrastructure Investment Is Fueling Equipment Demand

Vietnam is undergoing one of the fastest infrastructure expansions in Southeast Asia.

The government has committed more than $25 billion to infrastructure projects, including highways, ports, rail networks, airports, and urban development programs.

Major projects include:

• Expressway and smart highway networks
• Metro systems in Hanoi and Ho Chi Minh City
• Airport expansions and logistics hubs
• Bridge construction and port modernization

These projects require large numbers of:

• crawler excavators
• tower cranes
• mobile cranes
• drilling rigs
• lifting equipment

All of these machines rely on slewing bearings as a critical component enabling rotational movement.

As a result, the demand for high-load capacity slew ring bearings is growing rapidly across Vietnam’s construction sector.

2. Rapid Growth of Construction Equipment Market

Vietnam’s construction equipment market is projected to grow from 2,575 units in 2024 to nearly 4,900 units by 2030, with an annual growth rate exceeding 11%.

Excavators account for the largest share of equipment used in the country’s earthmoving and infrastructure projects.

Key international manufacturers active in Vietnam include:

• Komatsu
• Caterpillar
• Hitachi Construction Machinery
• SANY
• LiuGong

Each excavator, crane, or drilling machine requires slewing rings for upper structure rotation, making this industry a major consumer of large-diameter bearings.

3. Vietnam Relies Heavily on Imported Machinery Components

Unlike countries with strong heavy-bearing manufacturing industries, Vietnam currently relies heavily on imported machinery and components.

Construction machinery in Vietnam is largely imported from:

• China
• Japan
• South Korea
• Europe
• the United States

This dependence creates opportunities for global manufacturers supplying:

• OEM slewing bearings
• replacement swing bearings
• large-diameter slewing rings
• customized heavy-duty bearings

For experienced manufacturers like ZZ Manufacturing, the Vietnamese market represents an attractive entry point due to strong equipment demand and limited local bearing production capacity.

4. Renewable Energy Expansion Is Increasing Demand for Large Bearings

Vietnam is rapidly expanding its renewable energy sector as part of its national power development strategy.

By 2030 the country plans to significantly expand:

• solar energy capacity
• onshore wind power
• offshore wind projects

Total renewable energy capacity is expected to grow dramatically as Vietnam works toward its net-zero emissions goals and energy security targets.

Wind turbines require multiple large-diameter slewing bearings for:

• yaw systems
• pitch control mechanisms
• turbine orientation systems

This creates a long-term demand for high-precision bearings capable of operating in harsh offshore environments.

5. Crane, Port, and Logistics Equipment Are Expanding

Vietnam’s rapid industrialization has also increased demand for:

• port cranes
• ship loaders
• container handling equipment
• gantry cranes
• offshore lifting systems

Urbanization in cities such as Hanoi, Ho Chi Minh City, and Da Nang has driven demand for tower cranes and heavy lifting equipment used in high-rise construction.

These machines rely on slewing rings to enable precise rotational movement under heavy loads, further expanding the market for high-quality bearings.

6. Industrial Automation and Robotics Are Emerging Markets

Vietnam is becoming a major manufacturing hub for global companies, particularly in electronics, automotive, and industrial equipment.

Automation equipment increasingly used in Vietnamese factories includes:

• AGV robots
• automated storage systems
• robotic welding platforms
• rotating assembly tables
• packaging machinery

Compact slewing bearings and turntable bearings are widely used in these systems to enable smooth rotational movement with high precision.

This sector is expected to grow as Vietnam continues to attract foreign manufacturing investment.

7. Replacement and Maintenance Demand

Slewing bearings typically operate under:

• heavy axial loads
• shock loads
• harsh outdoor environments

As a result, industries such as construction, mining, and energy require frequent replacement of worn bearings.

Vietnam’s growing fleet of excavators, cranes, and drilling rigs ensures a continuous aftermarket demand for replacement slew rings.

For suppliers, this creates recurring business opportunities through distributors and service companies.

How ZZ Manufacturing Supports the Vietnam Market

ZZ Slewing Bearing (Shanghai) Co., Ltd. is a specialized manufacturer of slewing bearings and forged components for heavy equipment and industrial applications.

Our products are widely used in:

• excavators
• cranes
• rotary drilling rigs
• solar trackers
• wind energy systems
• automated equipment
• material handling machinery

With advanced machining, heat treatment, and precision grinding capabilities, ZZ provides:

• OEM slewing bearings
• replacement swing bearings
• customized bearing solutions
• large-diameter heavy-load bearings

These capabilities allow us to support distributors, equipment manufacturers, and maintenance companies serving the growing Vietnamese market.

Conclusion

Vietnam is rapidly becoming one of Southeast Asia’s most promising markets for slewing ring bearings.

The combination of:

• large-scale infrastructure investment
• booming construction equipment demand
• renewable energy expansion
• growing automation industries
• dependence on imported machinery components

creates strong opportunities for global manufacturers.

Companies that can provide high-quality bearings, competitive pricing, and engineering support are well positioned to build long-term partnerships in the Vietnamese market.

The post Why Vietnam Is a Fast-Growing Market for Slewing Ring Bearings Opportunities for Global Manufacturers appeared first on ZZ Slewing Bearing.

In the world of precision engineering and heavy machinery, selecting the right component is crucial. A common dilemma for engineers and procurement managers is understanding the specific difference between a ball bearing and a slewing bearing.

While both are designed to facilitate rotation and reduce friction, they are built for vastly different worlds. One is a master of high-speed efficiency, while the other is a giant capable of handling massive heavy-duty loads.

This guide breaks down their structural differences, load capacities, and ideal applications to help you make the right choice.

What is a Ball Bearing?

A ball bearing is the most common type of rolling-element bearing. It uses spherical balls to separate the bearing races, drastically reducing rotational friction.

• Design: Typically consists of an inner ring, an outer ring, a cage, and ball elements.

• Key Feature: Point contact. The balls make contact with the raceway at a single point.

• Best For: Applications requiring high rotational speed and low friction, such as electric motors, pumps, and automotive wheels.

What is a Slewing Bearing?

A slewing bearing (often called a slewing ring or turntable bearing) is a specialized bearing designed to support heavy axial loads, radial loads, and—most importantly—tilting moment loads simultaneously.

• Design: Often features mounting holes, internal or external gears, and sealing systems integrated directly into the rings.

• Key Feature: Large diameter and robust structure specifically for slow, oscillating movements.

• Best For: Heavy equipment like excavators, cranes, and wind turbines where the structure must rotate 360 degrees while carrying a heavy load.

The 4 Core Differences: Ball Bearing vs. Slewing Ring

To understand which one you need, we must compare them across four critical engineering dimensions:

1. Load Capacity and Type

This is the biggest differentiator.

• Ball Bearings: Due to their point-contact design, standard deep groove ball bearings are excellent for radial loads (perpendicular to the shaft) but have limited capacity for heavy axial loads or moment loads.

• Slewing Bearings: These are designed to handle complex loads. They excel at managing tilting moment loads (the force that tries to flip the bearing over). If you are building a crane that lifts a heavy weight at a distance, you need a slewing bearing to counteract that leverage.

2. Rotational Speed (RPM)

• Ball Bearings: Built for speed. They generate very little heat and can operate at thousands of RPM (Revolutions Per Minute).

• Slewing Bearings: Built for stability. They typically operate at low speeds (often less than 10 RPM) or in intermittent oscillating motions.

3. Structure and Integration

• Ball Bearings: Usually compact and standardized components mounted onto a shaft and inside a housing.

• Slewing Bearings: They are structural components themselves. They are often large (0.4m to 10m in diameter) and mount directly to the machine frame via bolts. Many come with integrated gear teeth, allowing them to be driven directly by a pinion.

4. Size and Scale

• Ball Bearings: Range from miniature (a few millimeters) to medium sizes.

• Slewing Bearings: Start where ball bearings usually end. They are the “giants” of the bearing world.

Comparison Table: At a Glance

Note: This table is optimized for Google Snippets.

FAQ: Common Questions about Bearing Selection

Q: Can a slewing bearing replace a ball bearing? A: Generally, no. Slewing bearings are too large and designed for slow speeds. They cannot handle the high RPMs that standard ball bearings are designed for.

Q: Why are slewing bearings used in cranes? A: Cranes generate a massive tilting moment (tipping force). Slewing bearings are uniquely designed to hold the crane stable against this force while allowing 360-degree rotation.

Q: What is the price difference? A: Slewing bearings are significantly more expensive due to their custom manufacturing, large size, and integrated features like gearing and mounting holes.

Conclusion

Choosing between a ball bearing and a slewing bearing ultimately comes down to your application’s specific needs regarding load and speed.

• Choose a Ball Bearing for compact, high-speed, low-load applications.

• Choose a Slewing Bearing for heavy, slow-moving machinery that requires support for tilting moments and structural integration.

Understanding these differences ensures your machinery runs efficiently and safely.

The post Ball Bearing vs. Slewing Bearing: Key Differences & Selection Guide appeared first on ZZ Slewing Bearing.

By ZZ Slewing Bearing – Engineering Expertise You Can Trust

90% of Slewing Bearing Failures Are Due to Wrong Selection, Not Manufacturing.

In real projects, we often see this scenario:

•  Drawings fully compliant
•  Materials and heat treatment meet all standards
•  Even from renowned manufacturers like Roth Erde, IMO, SKF, KAYDON, ISB…

Yet the equipment experiences:

• Unusual noise within 6 months
• Surface pitting within 1 year
• Play or backlash failure in less than 2 years

The key point: Wrong selection.

Slewing bearings are not standard bearings—they are a composite of structural, motion, and safety components.

If you only ask about model, price, or delivery, you are already in the risk zone.

Even after-sales replication of the original part may not solve the issue: the original design itself might not be optimal. In real applications, ZZ Slewing Bearing has observed many bearings failing well before their expected 10-year lifespan.

Step 1: Understand Your Equipment’s Actual Loads

Many selection mistakes start here. Providing only the rated load is a common fatal error.

Example: Our equipment’s max load is 30 tons, pick a bearing. This is insufficient.

A slewing bearing’s real working condition includes three forces:

1. Axial Force (Fa)
2. Radial Force (Fr)
3. Overturning Moment (Mk)

In 80% of equipment, the overturning moment is the real killer.

Typical overlooked equipment:

• Lifting machines
• Grapples
• Drilling rigs
• Aerial platforms

The load may not be high, but the lever arm is long. Often, clients do not provide the true combination of forces and moments.

Static vs Dynamic Loads

Many datasheets list static rated loads, but real machines often experience:

• Impact loads
• Frequent start/stop cycles
• Uneven rotation

If selected based on static load only, dynamic operation will cut the bearing lifespan in half.

Step 2: Structural Selection – Single, Double, or Triple Row

Single Row Four-Point Contact Ball

• Pros: Low cost, compact, easy installation
• Cons: Suitable only for stable loads, minimal impact, low rigidity
• Common Misuse: Applied on eccentric or frequently reversing loads
• Result: Local raceway spalling, rapid play increase, reduced lifespan

Double Row Ball / Crossed Roller

• Purpose: Solve rigidity issues
• Use case: Precision-sensitive or overturning-sensitive equipment
• Focus: Structural rigidity, not just lifespan
• Many customers realize the problem only after vibration or misalignment occurs

Triple Row Roller

• Not “expensive”—it’s necessary
• Handles: Extreme loads, high overturning moments, continuous operation
• Mistake: Using cheaper bearings when triple-row is required

Step 3: Gear Selection – 90% of Issues Are Here

Small pinions are more delicate than the bearing itself.

Critical points:

• Teeth must be hardened
• ≥17 teeth
• Profile shift must be applied

Common errors:

Reducing side clearance for “higher accuracy”

Reality: Thermal expansion, installation errors, and structural deformation can overload the gear

Step 4: Installation Conditions

Slewing bearings are extremely sensitive to:

• Mounting surface flatness
• Concentricity
• Bolt preload consistency

Many “quality complaints” actually result from installation issues:

• Surface waviness → early raceway fatigue
• Uneven bolt torque → uneven load distribution → localized overloading

No manufacturer can cover these risks.

Step 5: Real Working Conditions Are Often Misunderstood

Statements like:

• “Our machine moves slowly.”
• “It’s only used a few times a year.”
• “It’s worked fine before, so no problem.”

…are irrelevant to engineering reality.

Engineering recognizes only:

1. Actual loads
2. Actual working conditions
3. Actual lifespan requirements

Slewing bearings do not bend physics based on assumptions.

Step 6: Correct Selection Logic – 7 Critical Questions

A proper selection must answer:

1. What is the true load combination? (Fa / Fr / Mk)
2. Are there impact or eccentric loads?
3. What are the true rigidity and precision requirements?
4. Does the structure type match the working condition?
5. Is the gear system designed as a whole?
6. Are installation conditions up to standard?
7. Is the target lifespan realistic or theoretical?

If any of these are unclear, it’s not selection—it’s gambling.

Step 7: Engineering Support  Price

Many realize after a project fails:

A slewing bearing is not just a product—it is a risk-elimination system

ZZ Slewing Bearing ensures risks are addressed before delivery With proper selection, slewing bearings become one of the least failure-prone components in your equipment

ZZ Slewing Bearing – Your Partner in Slewing Bearing Expertise

Professional advice, full engineering support, and long-term reliability

Not selling a product, but providing confidence, safety, and performance

The post The Ultimate Slewing Bearing Selection Guide appeared first on ZZ Slewing Bearing.

Slewing bearings must be lubricated with grease rather than liquid oil.  ZZ Slewing Bearing normally use lithium-based grease with NLGI grade 2 and extreme pressure (EP) additives is recommended, as it provides good load-carrying capacity, water resistance and overall versatility.

For low-speed and heavy-duty applications with frequent start-stop or impact loads, EP grease or grease containing molybdenum disulfide (MoS2) can be used, although high MoS2 content is not recommended for high-speed or precision slewing systems.

In humid, dusty or marine environments, water-resistant grease such as calcium-based or composite grease is preferred. For operating temperatures above 120℃, high-temperature grease such as complex lithium or polyurea grease should be selected.

Lubrication Period

Under normal operating conditions, slewing bearings should be lubricated every 100–150 operating hours or at least once per week for continuously running equipment. For heavy-duty or shock-loaded applications, the lubrication period should be shortened to 50–100 hours.

In dusty, muddy or wet environments, daily or per-shift lubrication is recommended. If the equipment has been out of service over three months, the slewing bearing must be fully relubricated before restarting.

Correct Greasing Method

Correct greasing method is as important as grease selection. Grease should always be injected while the slewing bearing is rotating slowly, allowing the grease to distribute evenly inside the raceway. Greasing should continue until old grease is uniformly expelled from the seals, ensuring that fresh grease has fully replaced the old lubricant. After greasing, excess grease should be removed from the seals and surrounding surfaces.

Greasing bearing, lubricating from only one grease nipple, or adding grease after long idle periods without rotation can lead to uneven lubrication, local dry contact and increased risk of pitting or cracking.

Gear ring lubrication

In addition to raceway lubrication, the gear teeth of slewing bearings require separate lubrication. High-adhesion open gear grease or spray-type gear lubricant should be applied directly to the gear teeth. Under normal conditions, gear lubrication is recommended every one to two weeks, and more frequently in dusty or wet environments.

Why Lubrication Matters?

Improper lubrication can result in increased friction torque, abnormal noise, raceway pitting, gear wear and even premature cracking of the bearing rings. Field experience shows that lubrication-related issues account for a significant proportion of slewing bearing failures, often exceeding material or manufacturing-related causes.

Need Technical Support for Slewing Bearing Lubrication?

If you are unsure about grease selection, lubrication Periods or proper greasing procedures for your specific application, our engineering team is ready to support you with professional recommendations.

The post Slewing Bearing Lubrication Guide appeared first on ZZ Slewing Bearing.

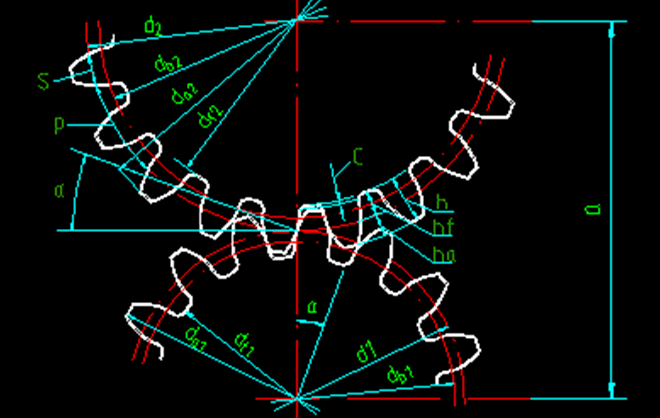

Design Considerations for the Meshing of Pinion and Slewing Bearings
— On the Importance of Tooth Count, Tooth Surface Hardening, and Tooth Profile Modification

In the slewing bearing drive system, the meshing quality between the pinion and the internal or external gear ring of the slewing bearing directly determines the load-bearing capacity, service life, and operational reliability of the entire slewing system.
In practical engineering applications, if the pinion design is not properly executed, issues such as root weakening, premature wear, tooth breakage, or even the failure of the entire slewing system can easily occur.

Among these, an insufficient number of teeth, lack of tooth profile modification, and absence of tooth surface hardening are the three core factors leading to failure. The following provides a systematic explanation of this issue from the perspectives of processing methods, meshing principles, and engineering practice.

1. Common Processing Methods for Pinions and Their Limitations

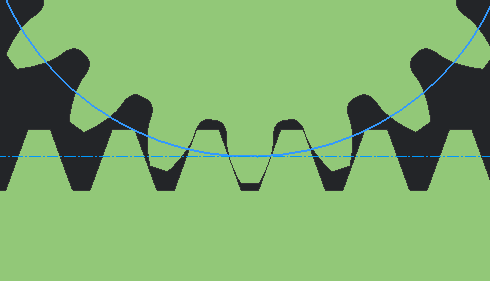

Currently, one of the most widely used processing methods for pinions is hobbing.
Hobbing belongs to the generating method, which means that the involute tooth profile is formed by simulating the gear meshing process through the relative motion between the hob and the workpiece.

During the hobbing process, the tooth profile is not formed in a single step but is gradually generated by the “imaginary rack” through incremental cutting.

This processing method offers high efficiency and stable precision, making it highly suitable for medium to large-scale production. Consequently, it is widely adopted for manufacturing pinions that are matched with slewing bearings.

However, when the number of gear teeth is small, hobbing inevitably introduces a serious issue—undercutting.

What is Undercutting? Why is it More Likely to Occur with Fewer Teeth?

   1.Definition of Undercutting

Undercutting refers to the phenomenon during gear processing where, due to an insufficient number of teeth, the hob intrudes into the root area of the tooth while cutting the tooth profile. This removes material from the root that should have been retained, resulting in a thinning of the root section.

From a geometric perspective, undercutting disrupts the continuity of the involute tooth profile at the root.
From a mechanical perspective, undercutting significantly reduces the bending strength of the tooth root.

   2.Why is Undercutting Prone to Occur with Tooth Count ≤ 17?

In the standard gear system (20° pressure angle, standard addendum coefficient), there is a recognized critical value:

For standard spur gears, when the tooth count is ≤ 17, undercutting is inevitable during hobbing.

This is determined by the geometric characteristics of the involute profile, not by machining errors.

When the number of teeth is too small:

• The base circle diameter decreases.
• The starting point of the involute curve moves closer to the tooth root.
• The cutting path of the hob inevitably intrudes into the root area.

Even with the highest machining accuracy, the phenomenon of undercutting cannot be avoided.

III. Practical Hazards of Undercutting in Slewing Bearing Systems

In ordinary transmission gears, slight undercutting might be acceptable.
However, in slewing bearing drive systems, undercutting constitutes a high-risk design flaw for the following reasons:

1. Significant Reduction in Tooth Root Strength

Slewing bearings operate under conditions involving:

• Large module
• High torque
• Low speed and heavy load
• Shock loads and frequent starts/stops

The tooth root is the area subjected to the highest bending stress. Once weakened by undercutting, it is highly susceptible to:

• Fatigue cracks at the tooth root
• Crack propagation
• Eventual tooth breakage

2. Increased Meshing Impact

Undercutting leads to an incomplete tooth profile, causing:

• Shortening of the actual line of action
• Non-uniform meshing stiffness

During slewing start-up or reversal, shock loads concentrate on the weakened root area, further amplifying the risk of failure.

3. Drastic Reduction in the Service Life of the Entire Slewing System

Once tooth root fracture occurs in the pinion:

• It quickly damages the slewing bearing gear ring.
• Metal debris enters the interior of the slewing bearing.
• This leads to irreversible secondary damage.

Such failures in construction machinery often mean the scrapping of the entire slewing system.

1. Why Must the Pinion Tooth Count Exceed 17?

Based on the above mechanisms, we explicitly state for slewing bearing applications:

The pinion tooth count should be greater than 17. This is the basic prerequisite for avoiding undercutting.

When the number of teeth increases:

• The starting point of the involute curve moves away from the root.
• The hob no longer intrudes into the dangerous area.
• The tooth root profile remains intact.
• Bending strength is significantly improved.

In engineering practice, the common safe design range is:

• 18–25 teeth (for small to medium modules)
• For larger modules, specific load verification is required.

Why is Tooth Profile Modification Also Essential?

Even if the tooth count exceeds 17, merely “avoiding undercutting” is still insufficient for slewing bearing applications.

1. The Role of Tooth Profile Modification

Tooth profile modification (Profile Shift) refers to intentionally adjusting the position of the hob relative to the gear’s pitch circle during hobbing, thereby altering the tooth profile distribution.

Positive profile shift can provide:

• Thickened tooth root
• Increased root fillet radius
• Significantly reduced stress concentration at the tooth root

This is particularly important for low-speed, heavy-duty, long-life applications like slewing bearings.

2. Special Characteristics of Slewing Bearing Systems

Unlike ordinary high-speed gears, slewing bearing drives feature:

• Low meshing speed
• Long single-tooth load duration
• Obvious superposition of contact stress and bending stress

Through positive profile shift, one can:

• Optimize the tooth root strength distribution
• Increase the safety factor
• Extend fatigue life

Therefore, in the design of components matched with slewing bearings, applying reasonable positive profile shift to the pinion is virtually an industry consensus.

1. Why Must the Pinion Undergo Tooth Surface Hardening?
2. The Slewing Bearing Gear Ring is Typically Surface-Hardened

Whether for internal or external gear slewing bearings, their gear rings usually undergo:

• Induction hardening
• Or overall quenching and tempering + surface hardening

The tooth surface hardness is generally high.

2. What Happens if the Pinion is Not Hardened?

If the pinion tooth surface hardness is significantly lower than that of the slewing bearing gear ring:

• Biased wear occurs during the initial meshing phase.
• The pinion becomes the “sacrificial component.”
• The tooth profile degrades rapidly.
• Meshing impact further intensifies.

This ultimately leads to:

• Premature failure of the pinion.
• Abnormal wear on the gear ring.

3. The Core Purpose of Tooth Surface Hardening

Performing tooth surface hardening on the pinion achieves:

• Improved wear resistance.
• Ensured hardness compatibility for meshing.
• Reduced risk of pitting and scuffing.
• Extended service life of the entire slewing system.

The post Why must the tooth surface be hardened? Why must the number of teeth be >17? Why must profile shift be applied? appeared first on ZZ Slewing Bearing.

In modern construction machinery, the slewing bearing plays a critical role in connecting the upper structure to the undercarriage and enabling smooth 360° rotation. For 12-ton excavators, selecting the right slewing bearing is essential for safety, precision, and operational efficiency.

Superior Load Capacity and Anti-Tilting Performance

Compared to traditional single row ball slewing bearings, a double row ball slewing bearing offers significantly higher load capacity and superior anti-tilt performance. Engineering tests and field applications have shown that using a double row design can reduce the inclination risk of a 12-ton excavator by approximately 30%, ensuring safer operation on slopes, uneven terrain, and heavy-duty work conditions.

Precision Internal Gear Design

Our internal gear slewing bearing features teeth on the inner ring that precisely mesh with the drive pinion, providing smooth and responsive rotation. The outer ring remains smooth and free of teeth, which reduces friction, simplifies maintenance, and ensures efficient lubrication. Coupled with a heavy-duty slewing ring made from high-strength steel and precision heat treatment, each bearing is rigorously inspected for dimensional accuracy, guaranteeing stable support for the entire machine.

High Performance Under Complex Loads

An excavator slewing bearing must withstand not only vertical loads but also radial forces and overturning moments. The double row ball arrangement distributes the load evenly across two rows of balls, reducing local wear and extending service life. Optimized sealing and lubrication systems ensure that the rolling elements and raceways operate in excellent condition, minimizing maintenance frequency and maximizing uptime.

Wide Industrial Applications

Our industrial slewing bearings are widely used across various construction machinery and industrial equipment, including excavators, cranes, rotary drilling rigs, and port machinery. Whether in single-machine operation or continuous heavy-duty tasks, the turntable bearing provides reliable support, ensuring stable rotation in challenging environments.

Integrated Solutions with Slewing Drives

By integrating our slewing bearings with precision slewing drives, customers gain a comprehensive solution that enhances machine performance, safety, and efficiency. The combination of double row ball design, internal gear precision, and robust heavy-duty construction ensures that your excavator operates reliably even under high stress and harsh conditions.

Reliable, Long-Lasting Performance

Choosing our double row ball slewing bearing provides more than just a high-load, high-precision, and long-life component. It delivers peace of mind with complete technical support and after-sales service. Optimized for safety, durability, and operational efficiency, our slewing bearings help your construction machinery achieve maximum value and performance in every project.

The post For a 12-ton excavator, selecting a double row ball slewing bearing reduces inclination risk by 30% compared to a single row design.” appeared first on ZZ Slewing Bearing.

As we look forward to the coming year, ZZ Slewing Bearing remains committed to providing high-quality products and solutions tailored to the unique needs of your business. We are proud to offer our range of precision-engineered products, including slewing rings and turntable bearings, which are essential components for ensuring smooth and efficient operation of your machinery. These products, known for their reliability and durability, continue to support industries worldwide in achieving operational excellence.

As the year comes to a close, we want to express our deepest thanks for your ongoing trust and collaboration. We hope this Christmas season brings you joy, peace, and memorable moments with your loved ones. May the New Year be filled with prosperity, new opportunities, and continued success for you and your team.

We eagerly anticipate further growth and collaboration in the year ahead, and we are committed to supporting your business with exceptional products and services. Thank you for choosing ZZ Slewing Bearing. Wishing you a Merry Christmas and a Happy New Year!

The post ZZ Slewing Bearing Wishes All Clients a Merry Christmas and a Prosperous New Year appeared first on ZZ Slewing Bearing.
